Description

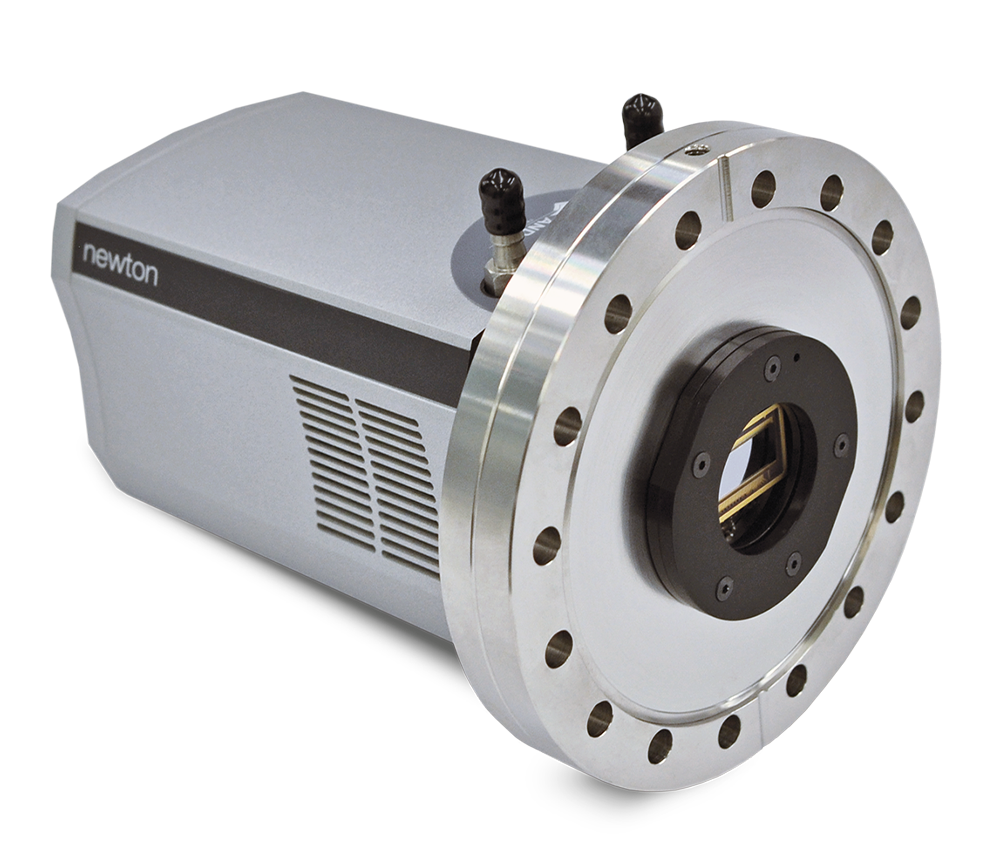

Newton SO – High Energy Detection
Andor’s Newton SO series features high-QE sensors for direct detection of soft X-ray, EUV or VUV photons. A convenient 16-point, knife-edge sealed 6? rotatable CF152 flange provides a robust and highly-effective seal to any compatible vacuum chamber interface. Newton SO features the industry-leading Thermo-Electric (TE) cooling platform, delivering down to -100ºC cooling performance and ensuring access to the lowest dark current.
| Pixels actifs | 1024 x 255 (1024 x 256 for BR-DD model) or 2048 x 512 |
| Taille des pixels | 26 x 26 m or 13.5 x 13.5 m |
| Zone d'image | Up to 27.6 x 6.9 mm |
| Register well depth (typical) Standard mode High Capacity Mode High Sensitivity Mode |
1,000,000 e- |
| Maximum cooling | -75°C |
| Maximum spectra per sec |
1612 |
| Read noise | 2.8 e- |
| Dark current | As low as 0.00007 e-/pixel/sec |
This 2048 x 512 sensor array with 13.5 x 13.5 µm pixels offers high dynamic range and high spatial resolution. Seamless software selection of a range of kHz and Multi-MHz readout speeds provide exceptionally low readout noise and faster frame rates respectively.
